Fine Grinding

Advanced Ultra Fine Grinding Technology

• High efficiency ultra fine grinding in open circuit thus simple and economical.

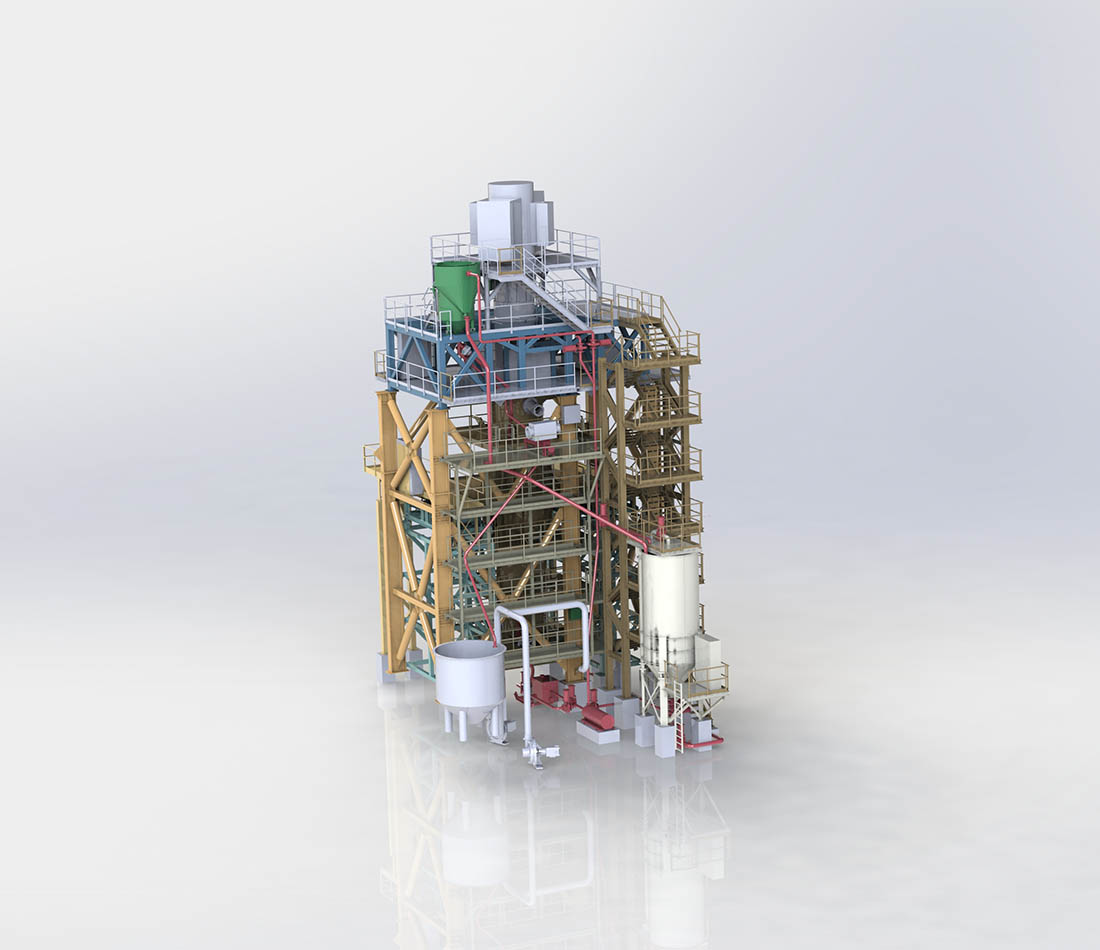

• Migmill is supplied complete as a plug and play package for ease of installation and commissioning.
• Easy to operate and maintain with limited stoppage time.
• Proven technology.
• Adjustable to varying feed conditions (throughput, material competency, density & feed size).
• Optimized internal design for improved wear rates.
• Improved feed system, which eliminates blockage, startup problems, time delays, and operational difficulties.
• Media filling and media removal have been carefully redesigned – eliminating spillage and loss of expensive media. Continuous measuring of media filling is also included.
• Accepts feeds up to F80 of 250µm and grinds down to P80 of 4µm.

Operating Principal

• Separation of fine and coarse/heavy particles by centrifugal forces (shaft rotation).
• Multiple grinding chambers, arranged in sequence, on top of each other.
• Separation between fine and coarse/heavy particles after every grinding chamber resulting in a steep product PSD curve.
• Fine / light particles remain in the centre of the grinding chamber and rise in the mill towards the discharge on the mill top without further grinding.
• Coarse / heavy particles are pushed to the outside of the grinding chamber to grinding zone.
